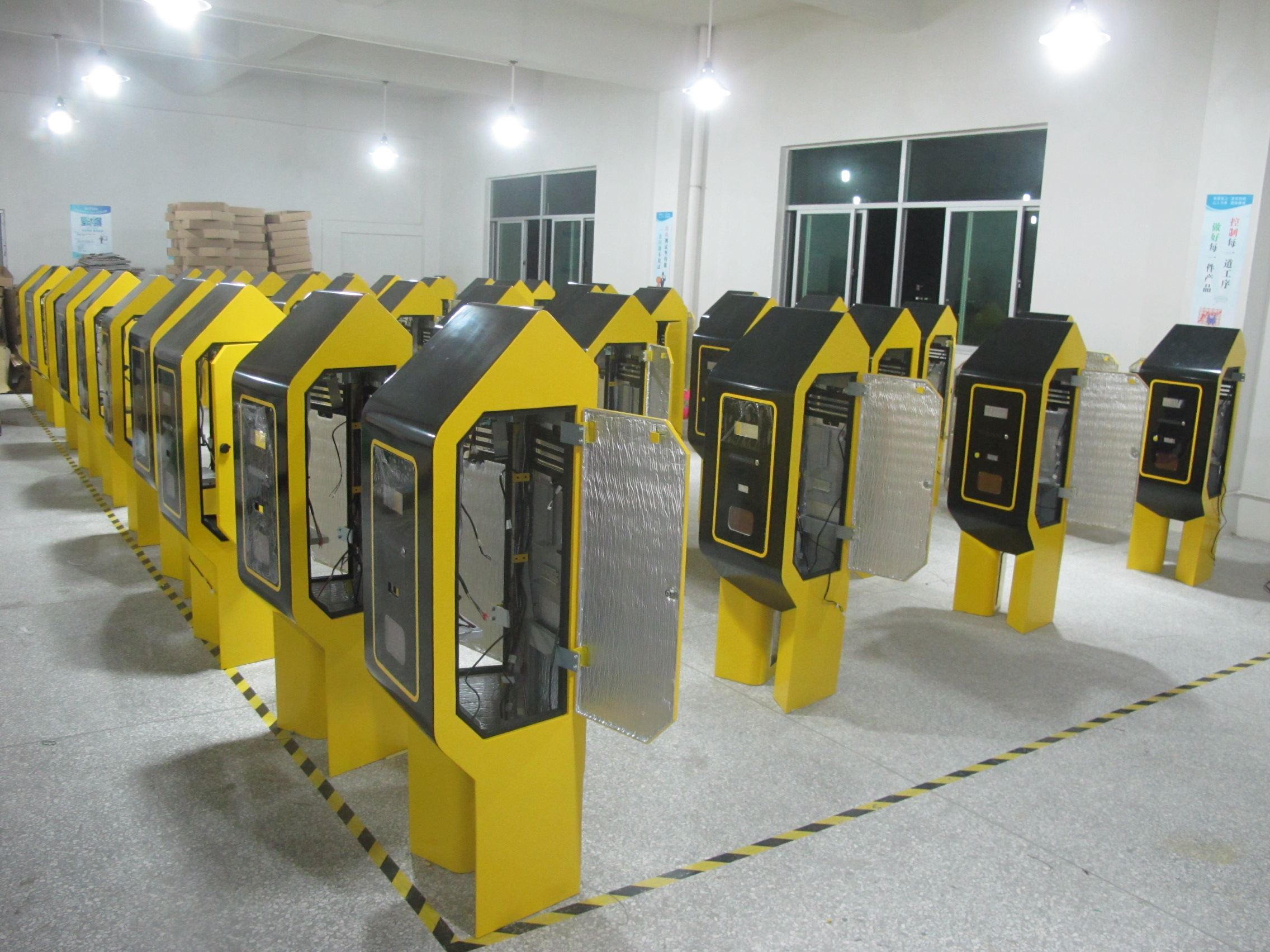

Acrylic panel modern design ticket dispensor for parking management system

Acrylic panel modern design ticket dispensor for parking management system

Acrylic panel modern design ticket dispensor for parking management system

Product Details:

Place of Origin: China
Brand Name: Asian China Security Product supplier OEM/ODM
Certification: Security access control products supplier
Model Number: ZPark-E

Payment & Shipping Terms:

Price: Security equipment factory price
Packaging Details: Standard export wooden case
Delivery Time: 3-5days
Payment Terms: TT,LC
Supply Ability: 1000/month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

The Z-Lane provides all functions such as ticket dispensing, ticket verifying and card reading, as are required in a car park environment.

The Lane Controller provides a modular hardware and software platform and can be configured to meet any requirements as might be encountered in current car park environment.

By standard, advanced barcode technology is used for identification of short term parking tickets as well as season passes.

STANDARD FEATURES

Computer: Industrial PC (1.5GHz Pentium Processor, 512MB RAM)

Display: 4” TFT (resolution 320x240, 500cd/m²)

Ticket Reader: Barcode scanner

Ticket Printer: Thermal printer (Entrance only).
Supports carton tickets (54 x 85mm, 170g/m² max)

Intercom: TCP/IP based module with speaker and microphone (Optional)

Network: Standard TCP/IP

Season Cards: Mifare (ISO14443A) card reader or EM based proximity card reader.
Integrated or external long range reader (Optional)

SPECIFICATIONS

Case: Iron, powder coating safety glass

Main Power: 100/120, 220/240 VAC ± 10%,
50/60 Hz with grounding

Consumption: 150W (250W with optional heater)

Ambient: -10°C ~ +60°C
(-40°C ~ +60°C with heater and thermal lamination)
10~90% RH (non-condensing)

Net Weight: 60 kg

Dimensions: 1276 (H) x 395 (W) x 440 (D) mm
