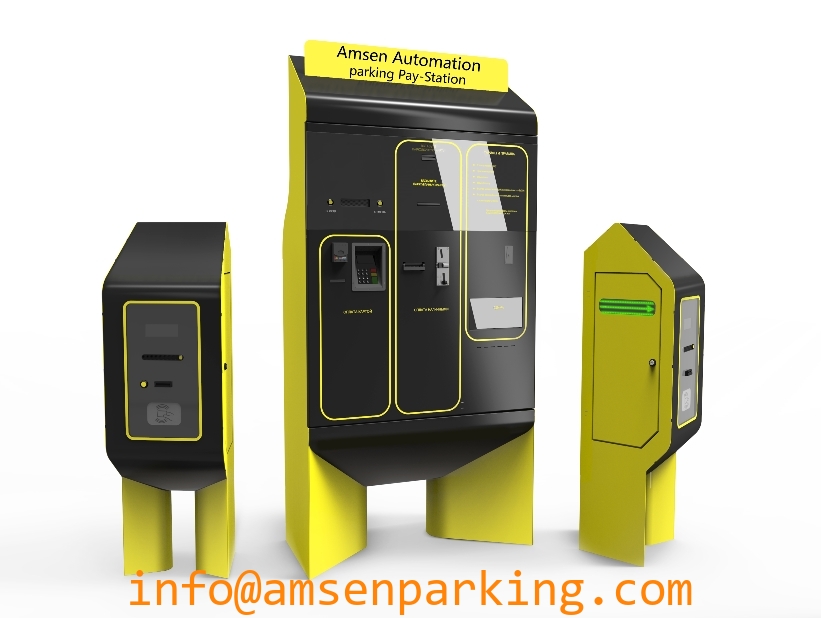

Acrylic panel modern design ticket dispensor for parking management system

Acrylic panel modern design ticket dispensor for parking management system

Acrylic panel modern design ticket dispensor for parking management system

Product Details:

Place of Origin: China
Brand Name: Asian China Security Product supplier OEM/ODM
Certification: Security access control products supplier
Model Number: ZPark-APS

Payment & Shipping Terms:

Price: Security equipment factory price
Packaging Details: Standard export wooden case
Delivery Time: 3-5days
Payment Terms: TT,LC
Supply Ability: 100/month
Minimum Order Quantity: 1
Contact Now
Detailed Product Description

The Automatic Pay Station is designed to provide automated revenue collection to parking facilities equipped with the Z-Pay parking management system.

The Pay-Lane can be used in conjunction with the Lane controller and cashier stations. It will report revenue and status related information to the Pay-lane management computer.

Payment of parking fees is facilitated by cash payment in coins and banknotes. In addition, cashless payment by credit cards or national cash cards can be provided.

By standard, parking tickets are identified by means of an advanced proximity card reading.

Features

  • Computer: Industrial PC (1.5GHz Pentium Processor, 512MB RAM)
  • Display: 9” TFT (resolution 1024x768, 400cd/m²)
  • Barcode Reader (optional)
  • Thermal Printer: Prints tickets, receipts and reports (Optional: separate Parking ticket printer).
  • Intercom: TCP/IP based module with speaker and microphone (Optional)
  • Network: Standard TCP/IP
  • GUI: Multi-language customer guidance (configurable)
  • Cards: Integrated mifare (ISO14443A) card reader or EM based proximity card reader (option).
    Certified EMV II Solution for Credit Card payments (Option).
  • Coin System: Recycles 4 coin values (hoppers with a capacity of up to 1000 coins),
    coinbox for non recycled coin values and hopper full condition.
  • Bank notes: Accepts 4 denominations (options: accept up to 16 notes, recycle 3x130 notes),max banknote storage up to 2500pcs.

Specifications

Case: Galvanized Steel (3mm) and acrylic plate.
Powder coating, Black, yellow
(Option: Stainless steel)

Main Power: 100/120, 220/240 VAC ± 10%, 50/60Hz

Consumption: 200W (300W with optional heater)

Ambient: -20°C ~ +60°C
(-40°C ~ +60°C with heater and thermal lamination)
10~90% RH (non-condensing)

Net Weight: 220kg

Dimensions: 2005 (H) x 1000 (W) x 415 (D) mm
2015 (H) with illumination acrylic top plate (option)
