AM-PMS-3000 Smart Parking Management System(EU Style)

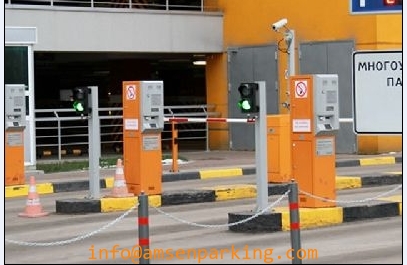

AM-PMS3000 is an advance series Parking Management System for managing high-grade pay-to-park facilities with high traffic flow, for both occasional and registered parkers. This system automatically dispenses IC/ID card or barcode ticket for occasional parkers, who will pay parking fee either through auto-pay parking cash machine or through exit station operator; The registered parkers get access and leave by self-service swiping their cards on entrance & exit controller respectively, or enter and leave parking lots without stop by using long rangeRFID tag. It is ideal solution for parking lots of high grade premises such as residential area, shopping center, exhibitioncenter, stadium, hotel, hospitals, airports etc.
Main Features
1. The system uses 32-bit ARM7 processor, improved system running speed and real-time character
2. The system is simple to operate, using DIP switch for settings and have real-time voice reminder function
3. Using high stability of power supply to improve operational stability and anti-jamming capability.
4. Self-test function, when power on, the system will automatically detect memory modules, audio modules, real time clock module and such to check operation condition, if there is error, alarm will warn.
6. System supports variety of cards- barcode ticket, IC/ID card, RFID tag
7. System supports image contrast function, real-time monitoring of four image (entrance & exit) to achieve a variety of monitoring methods to achieve most secure protection.
8. System supports the function of paper tickets.
9. System supports ticket receipt printing
11. Online display driver information, vehicle photo feature etc
12. Voice broadcast cards type , license plate numbers , parking charge amount.
13. Full details of charging standard feature.
14. Permission of different cards type open barrier gate feature.
15. Monthly card extension supports operating without card
16. System supports LED display of remaining or full parking spaces
17. Administer can customize the LED display content.
19. Support central station of parking fee collection
20. Support closed barrier gate read card function
21. Support manual open gate detection
22. Support barrier gate, card dispenser monitoring function
23. Support lost card processing capabilities
24. Perfect one vehicle one card function
Main Technical Parameters:
Power supply voltage: AC220V ± 10% 50HZ
Working voltage: DC12V 3A
Working temperature: -25 ℃ ~ +70 ℃
Humidity: ≤ 90%
Communication: RS485
Communication distance: up to 1200 m
Storage capacity: 20,000
Input Interface: RS485
There Proximity Range: ≤ 10CM (IC)
RFID Proximity Range: ≤ 30 M
Barrier gate output: ≤ 1S
Reader Response speed: ≤ 0.5 S
Housing dimension: H1350 * W450 *L 320 mm
IP protection: IP54
