Tripod Turnstiles are compact and cost-effective entrance solutions designed for smooth and quite operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people.

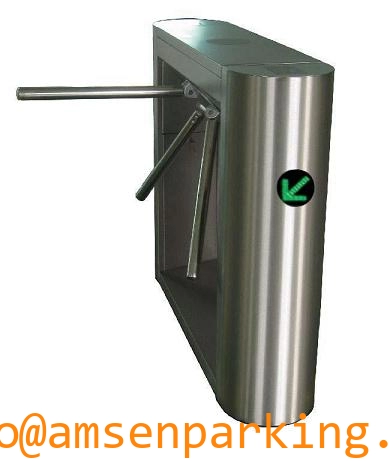

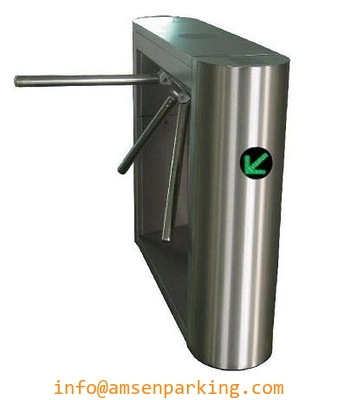

AM-TS30, the stainless steel compact version, offers high operating reliability in a small casework for wall-mounted or pedestal installation, ideal for sites where space is an issue. On receiving a signal from the access control system, or push button, it allows the passage of one person at a time.
Main Technical Parameters
◇ Material: 304 stainless steel, thickness 1.5-2mm optional cabinet
◇ Dimensions: length 420 × width 330 × height 980 (mm) / Length Width 280 × height 1200 × 1000 (mm)
◇ brake lever length : 500 (mm)
◇ brake lever maximum tolerance: 80Kg
◇ brake lever work driving force : 3Kg
◇ brake lever Transmission: digitally
◇ brake lever steering : one-way , two-way ( optional )
◇ Emergency measures: automatic / manual off the pole ( optional )
◇ Lighting Tips: access status indication
◇ Working environment: indoor, outdoor
◇ Temperature : -30 ℃ ~ 70 ℃
◇ gate opening time: 0.2 seconds
◇ pass speed: 30 people / minute
◇ Power supply voltage : AC220V ± 10%, 50Hz;
◇ Motor Movement : 24V / 30W homemade electromagnet German technology
◇ card reader port Size: equipped with standard mounting bracket, or tailor
◇ Communication interface: RS485 interface standard electrical
◇ Communication distance : ≤ 1200 m ( mass of wire and converter , the number of
485 devices , equipment, lightning protection and baud rate will seriously affect the level of communication distance ) in the ideal environment premise
◇ Input Interface : +12 V level signal or pulse width > 100ms pulse signal , the drive current > 10mA
