Double gate security full height turnstile

Double gate security full height turnstile

    • Double gate security full height turnstile
    • Double gate security full height turnstile
  • Double gate security full height turnstile

    Product Details:

    Place of Origin: China
    Brand Name: Asian China Security Product supplier OEM/ODM
    Certification: Security access control products supplier
    Model Number: AM-RG400

    Payment & Shipping Terms:

    Price: Security equipment factory price
    Packaging Details: Standard export wooden case
    Delivery Time: 3-5days
    Payment Terms: TT,LC
    Supply Ability: 100/month
    Minimum Order Quantity: 1
    Contact Now
    Detailed Product Description

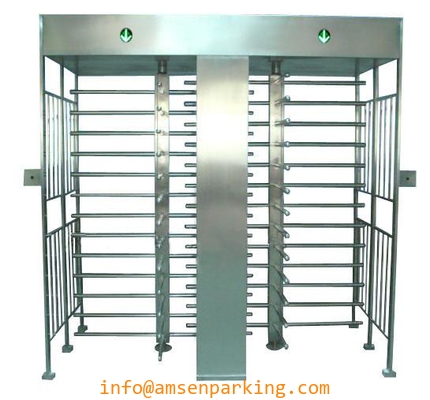

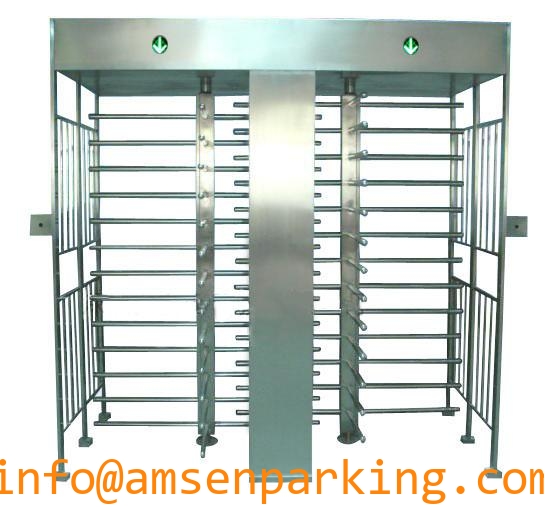

    AM-RG400 Full Height Revolving Gate



    AM-RG400 full-height cross revolving turnstile gate is use 304 fine stainless steel polished, fashionable, elegant appearances. It applies for indoor and outdoor, provides entrance or exit to stadiums, stations, terminals, exhibition centers, industrial complexes, military establishments, prisons and other premises where high quality, combined with high security full height barriers are required. AM-RG400 are small thrust, low noise, anti-lock design, smooth operation and without oscillation. It adapts passive rotation, rotation driven by the authorization passer. According to the angle of rotation, it divided into 120-degree three-arm turnstile and 90 degrees four-arm turnstile; It supports single or bi-direction pass and supports free open (power failure can freely bi-directional rotation) and locked (power off in a self-locking, can not rotate)
    variety of operation modes.; You also can have ceiling and roof design or without according to your requirement.

    Features:

    • Bi-directional passage
    • Electrical controls for both directions
    • Integration with variety identification or access control system
    • Optional functions: Counting; Voice and flashing light warning; Fire and security linkage
    • Automatic reset of barrier wings after each passage
    • Push button switch override controls for emergency situations
    • Cable or wireless remote control
    • Indoor and outdoor application
    • High level of security
    • Anti-backup device to prevent reverse rotation



    Specifications:

    Model NO:

    AM-RG400

    Casework

    304 grade grained stainless steel

    S/S Thickness

    1.5~2.0mm

    Voltage

    AC220V±10% 50HZ±10%

    Control circuit

    DC 24V

    Signal Output

    relay or 12v pulse

    Input interface (optional)

    DC12V/dry/contact/RS485/RS232/Remote)

    Working environment

    In door and out door

    Working temperature

    -40℃~+60℃

    Relative humidity

    ≤90%, no condensation

    Passing direction

    Single or Bi-direction

    Passage width

    510mm

    Passing speed

    25-30 person/min

    Dimension

    2600*1350*2300mm

    Weight

    200KG

    IP protection

    IP 55

    MCBF

    3000,000 cycle
