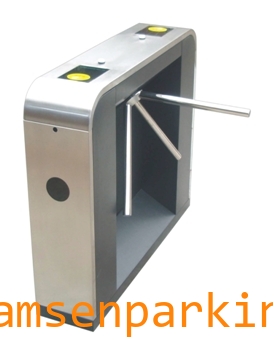

Bridge turnstile for airport metro security system people access control Perco

Bridge turnstile for airport metro security system people access control Perco

Bridge turnstile for airport metro security system people access control Perco

Product Details:

Place of Origin: China security product
Brand Name: Asian China Security Product supplier OEM/ODM
Certification: Security access control products supplier
Model Number: AM-TS50

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Security equipment factory price
Packaging Details: Standard export wooden case
Delivery Time: 3-5days
Payment Terms: TT,LC
Contact Now
Detailed Product Description

Main Technical Parameters

◇ Material: 304 stainless steel, thickness 1.5-2mm optional cabinet

◇ Dimensions: length 420 × width 330 × height 980 (mm) / Length Width 280 × height 1200 × 1000 (mm)

◇ brake lever length : 500 (mm)

◇ brake lever maximum tolerance: 80Kg

◇ brake lever work driving force : 3Kg

◇ brake lever Transmission: digitally

◇ brake lever steering : one-way , two-way ( optional )

◇ Emergency measures: automatic / manual off the pole ( optional )

◇ Lighting Tips: access status indication

◇ Working environment: indoor, outdoor

◇ Temperature : -30 ℃ ~ 70 ℃

◇ gate opening time: 0.2 seconds

◇ pass speed: 30 people / minute

◇ Power supply voltage : AC220V ± 10%, 50Hz;

◇ Motor Movement : 24V / 30W homemade electromagnet German technology

◇ card reader port Size: equipped with standard mounting bracket, or tailor

◇ Communication interface: RS485 interface standard electrical

◇ Communication distance : ≤ 1200 m ( mass of wire and converter , the number of

485 devices , equipment, lightning protection and baud rate will seriously affect the level of communication distance ) in the ideal environment premise

◇ Input Interface : +12 V level signal or pulse width > 100ms pulse signal , the drive current > 10mA

Main Features

1. Using 304 standard stainless steel, professional industry design at IP54 with moisture proof, dust proof and water proof, suitable for indoor and outdoor;

2. Housing in standardized design, based on the full CNC laser cutting, drilling, molding technology, mechanization drawing process, the modular docking, it is easy to handle maintenance with high degree of interchange

3. Self-centering mechanism to ensure complete rotation into the home position

4. Anti-backup device to prevent reverse rotation once the mechanism has moved 60° from home

5. Positive locking action for one passage at a time

6. Optional brake lever cover to prevent body harm of child and pedestrian due to collision

7. Drop arm : the horizontal arm can drops automatically to create a clear passage for evacuation when receive fire alarm or power failure

8. Easy to integrated with various reading devices
